M60/B30 (3.0 L DOHC V8 '94-'95 530i)
New issue: Oil pump bolts can become loose, see www.530i.org, maintenance section
Problem Areas (I believe these items are covered by service bulletins)
Leaking cam and timing cover gaskets
Failure of throttle / cruise control cable end fittings
Loose screws on oil pan
'95 models only: Excessive emissions due to long-term deposits on oxygen sensor. DME EPROM replaced.
Other Misc Potential Problems on the 530i

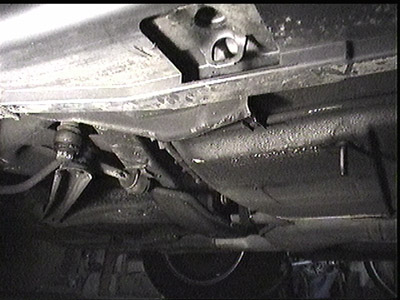

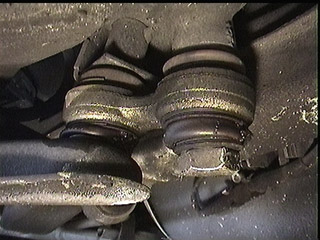

In the event battery is overfilled or boils, vent tube sprays acid on right-side dog bone (trailing arm connecting link) damaging the plastic seals.
Power steering and A/C hoses are poorly shielded from exhaust system radiated heat. Clamps may loosen with age allowing leaks.
Locations of Misc Items on the 530i...
These photos have no other home, so here they stay.

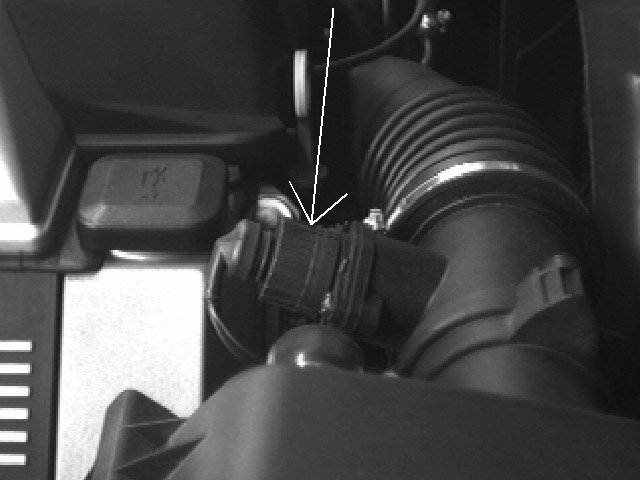

Mass Air Flow Sensor - near engine air filter box

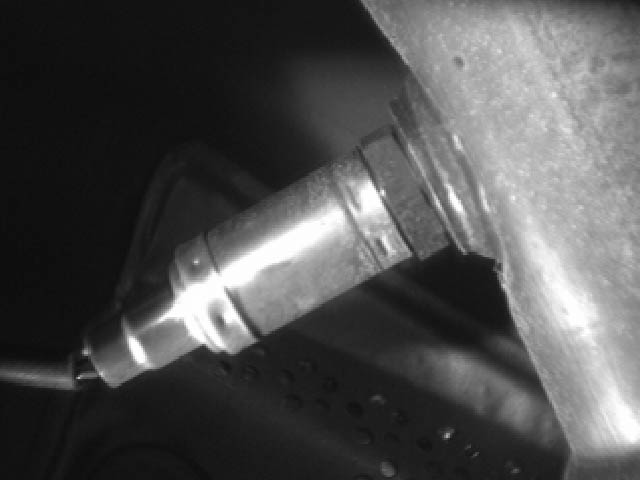

Oxygen Sensor - note there are two
on the M60 - underneath, near transmission

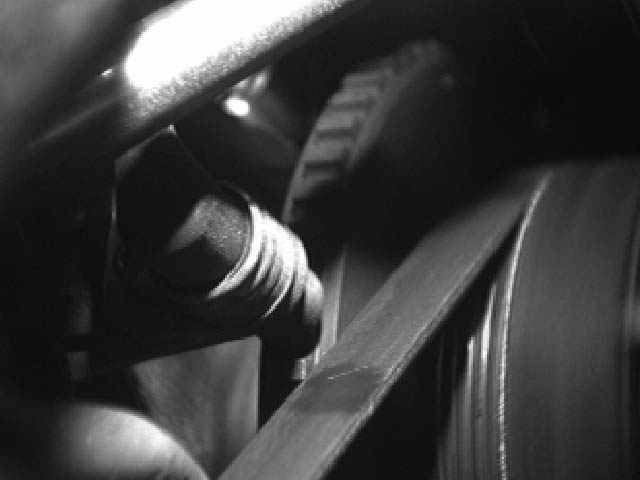

Crankshaft Position
Sensor - front of engine

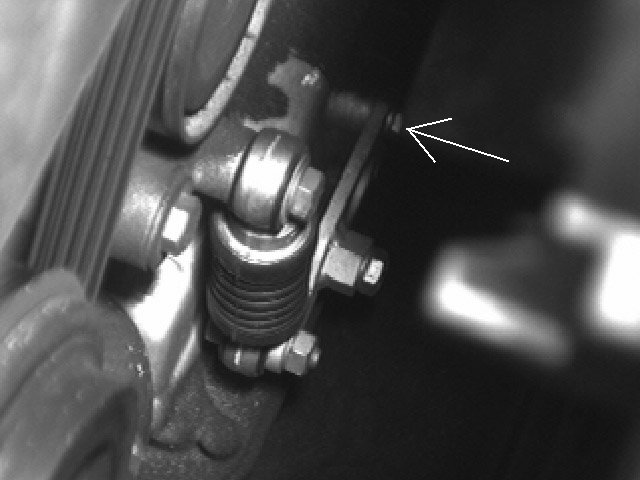

Drive Belt Tensioner - there
are two of these, adjust for maximum tension

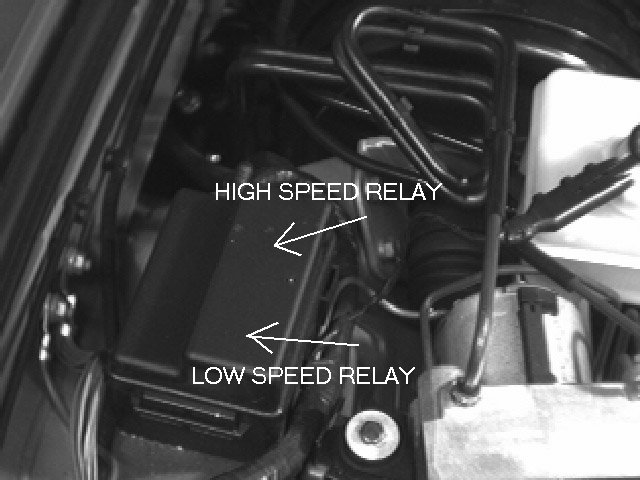

Auxiliary Cooling Fan Relay Box - left wheelwell

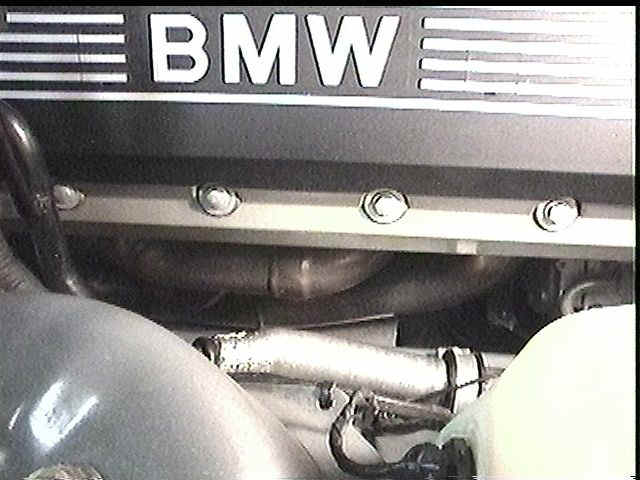

Lightweight Stainless Steel
Exhaust Headers - not "equal length headers" of hotrod fame, but a
high-capacity system non-the-less for only three liters.

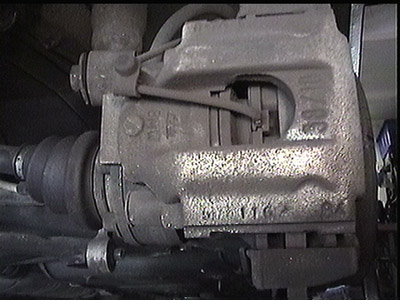

Brake Pad Wear Sensor -
right-rear shown.

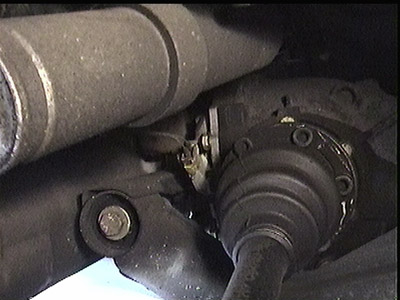

Vehicle Speed Sensor on differential housing.
